主要用途
本机是生产军用和民用压缩饼干的专用食品机械设备。压缩饼干的生产过程: 1.饼干烘制2打粉3.拌料4.压制5.包装等五个部分。
其中饼干压缩机是该生产过程中的关键设备。

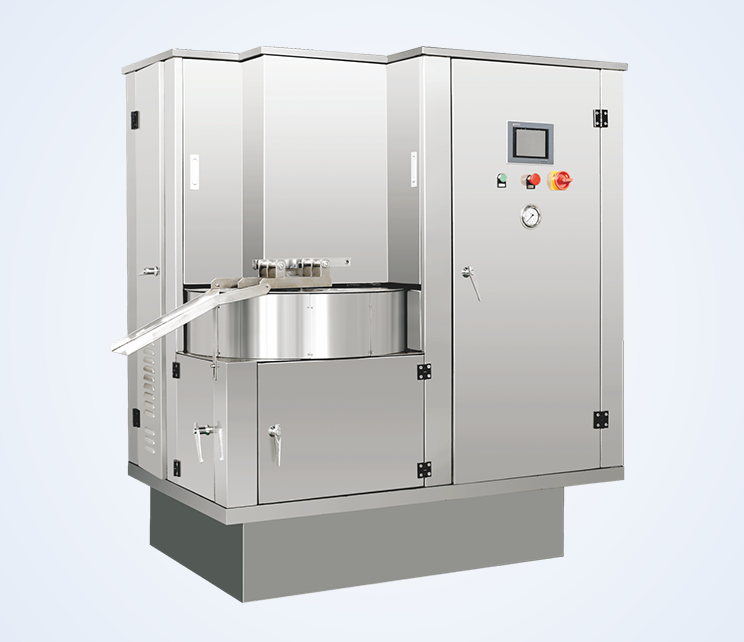

本机的机械结构，液压系统，电动驱动和电子控制几部分组成的，配不锈钢料斗，下料轨等组成。本设备除上料外为无人化自动操作运行。多台设备用输送线相连可组成机组自动运行，若配上自动送料部分可实现全自动无人操作。
MAIN PURPOSE
The machine is a special food machine for producing military and civil compressed biscuits. The production process of compressed biscuits: 1. Baking of biscuits 2. Pulverizing 3. Mixing 4. Pressing 5. Packaging. The biscuit compressing machine is a key machine during the production process. The machine is composed of several parts such as mechanical structure, hydraulic system, electric-driven structure and electronic control part. It is equipped with stainless steel hopper and feeding track. Except feeding, the machine automatically operates in an unattended way. Many machines can be connected by conveyor lines to form a unit for automatic running. If
equipped with an automatic feeding part, it can realize full-automatic unattended operation. Manual feeding, automatic pressing, automatic discharging, four-station running and four-mold pressing.
技术参数TECHNICAL PARAMETERS | ||
型号Model | ZPW-4 | ZPW-4-4 |
最大压片压力Max. tablet pressure(kn) | 180-250 | 180-250 |
最大压片直径Max. tablet diameter(mm) | 40x80 | 40x80 |
最大充填深度Max. filling depth(mm) | 40 | 40 |
最大片剂厚度Max. tablet thickness(mm) | 10-20 | 10-20 |
最大工作直径Max. working diameter(mm) | 750 | 750 |
转盘转速Turret rotation speed(r/min) | 8 | 8 |
生产能力Production capacity(Pc/h) | 3840 | 7680 |
电机功率Motor power(kw) | 7.5 | 11 |
外形尺寸Overall size(mm) | 1240x920x1710 | 1900x1260x1960 |
主机重量Machine weight(kg) | 2000 | 2500 |
