主要用途
该机具有自动提升、混合、下降等功能。配一台料斗混合机及多个不同规格的混合料斗，就能满足多品种不同批量的混合要求，是药厂总混的理想设备。同时在制药、化工、食品等行业广泛使用。
MAIN PURPOSE

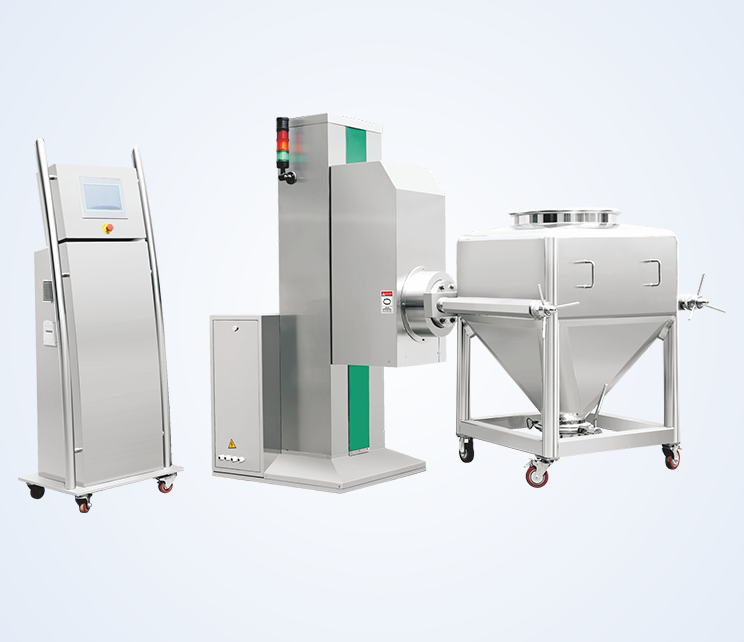

The machine is provided with such functions as automatic lifting, mixing, lowering, etc. A hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of diversified varieties and different batches of products. It is an ideal machine for mixing in pharmaceutical plants. It is also widely used in such industries as medicine, chemical industry, food, etc.
型号Model | 主要结构尺寸Main structural dimensions | 混合转速 Speed (rpm) | 总功率 Power (kw) | 机器重量 Weight (T) | ||||||||||
A | B | C | L | H1 | H2 | H3 | H4 | H5 | L | kg | ||||
HTD-100 | 600 | 1160 | 1300 | 2200 | 250 | 700 | 1100 | 1190 | 2000 | 80 | 50 | 3~20 | 2.2 | 0.8 |
HTD-200 | 600 | 1350 | 1550 | 2250 | 250 | 700 | 1230 | 1460 | 2100 | 160 | 100 | 3~20 | 2.6 | 0.9 |
HTD-300 | 600 | 1420 | 1650 | 2500 | 300 | 750 | 1560 | 1630 | 2200 | 240 | 150 | 3~20 | 3 | 1 |
HTD-400 | 600 | 1450 | 1850 | 2650 | 400 | 750 | 1690 | 1780 | 2300 | 320 | 200 | 3~20 | 4.4 | 1.2 |
HTD-500 | 800 | 1550 | 1950 | 2800 | 400 | 750 | 1800 | 1880 | 2400 | 400 | 250 | 3~15 | 4.4 | 1.4 |
HTD-600 | 800 | 1650 | 2080 | 2900 | 400 | 750 | 1870 | 2000 | 2400 | 480 | 300 | 3~15 | 5.2 | 1.7 |
HTD-800 | 800 | 1750 | 2300 | 3000 | 400 | 750 | 1970 | 2150 | 2500 | 640 | 400 | 3~15 | 5.2 | 2 |
HTD-1000 | 800 | 1850 | 2350 | 3150 | 400 | 750 | 2050 | 2250 | 2700 | 800 | 500 | 3~15 | 6.2 | 2.2 |
